Using the Countermeasure Ladder for Effective Root Cause & Preventive Actions
Unless you live in an alternate universe, as a business leader you are bound to encounter problems, issues, or challenges. These are a drain on resources, cost money, and sometimes can even cause damage to your organization’s reputation. They could get you into trouble with regulators too.
Taking corrective action is one step, but it should be followed by implementing preventive measures to mitigate the risk of the problem recurring in the future. To be able to understand the risk and identify the best corrective and preventive action, root cause analysis becomes very important. Only when the causative factor is correctly identified and addressed can future occurrences be prevented.
In this blog, we share highlights from a webinar we conducted in partnership with ASQ. Leslie Pemberton, Head of OE & Quality at Kennametal, shares with us tips and tricks of using the Countermeasure Ladder for Effective Root Cause & Preventive Actions.
Using “Percentage of Repeats” as a Metric:
Some of the frequently occurring challenges can be complaints about quality from customers, productivity downtime, or safety-related incidents. Typically, the number of incidents is measured against the cost of the problem. For instance, suppose ‘Plant X’ receives 19 complaints in a given month, and out of these, 7 are issues that have already occurred before within the rolling 12 months, you can get a “Percentage of Repeats” metric. To overcome this issue companies can set targets for improvement, with the ultimate target being zero. As is often said, what gets measured, gets fixed.
Using the Countermeasure Ladder to improve Preventive Actions
Countermeasure Ladder is a methodology taken from TPM (Total Productive Maintenance). Historically, the technique has been used to assess countermeasures for machine down-time. It is usually listed down as a set of six countermeasures.
Using the same tool for Quality CAPAs has been extremely effective.

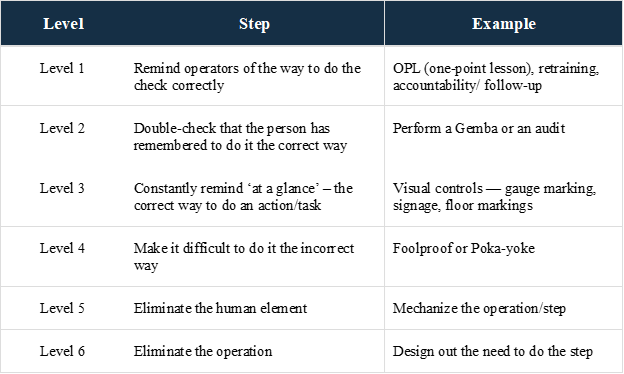

Now, let’s talk about six levels of Countermeasure Ladder to improve CAPA:
Examples of Level 4, 5 & 6 Countermeasure for a Complaint:
Let’s discuss a few examples of Level 4, 5 & 6 Countermeasures along with issues for better understanding.
Issue: Operators are entering incorrect data for part weights due to keying (manual) error.
- CAPA: Install scales with auto feed to SPC charts (Poka-yoke — Level 4)
Issue: Operators continuously measure parts incorrectly due to poor R&R on gauges.
- CAPA: Install in-line laser measurement system to measure parts and auto-enter into SPC charts (Mechanize the process — Level 5)
Issue: Operators fail to remove flash from parts after they are molded
- CAPA: Install automatic deburring right in the mold (Eliminate the step — Level 6)
Typical CAPAs in Manufacturing
Some of the common corrective actions in the manufacturing industry based on root cause analysis include:
- Retraining operators
- Issuing a new procedure
- Disciplining the operator who ran the parts
Scoring CAPAs by Countermeasure Level
Scoring CAPAs by Countermeasure level is called an Input Metric or a Leading Indicator.
Input metric = scoring system using Countermeasure Ladder
The team’s CAPAs are measured with scores and feedback provided helps move it further up in the ladder. The examples shared in the six levels of Countermeasure Ladder with typical CAPAs are at Level 1. An improvement target for this metric would be:
% CAPAs rated 4 or above on the Countermeasure Ladder
The lagging indicator vs percent repeating issues and input metric and percentage CAPA at level 4 or above are highly correlated when running a statistical analysis.
Scorecard metric = % Repeating issues — drive to zero!
Proactive input metric = % CAPAs at level 4 or above — drive to at least 75%
% CAPA at level 4 or above can be used for complaints, safety incidents, downtime, scrap, or any other improvement opportunities that require a countermeasure for failure.
